- DIMENSIONS: 122″ x 36″ x 54″

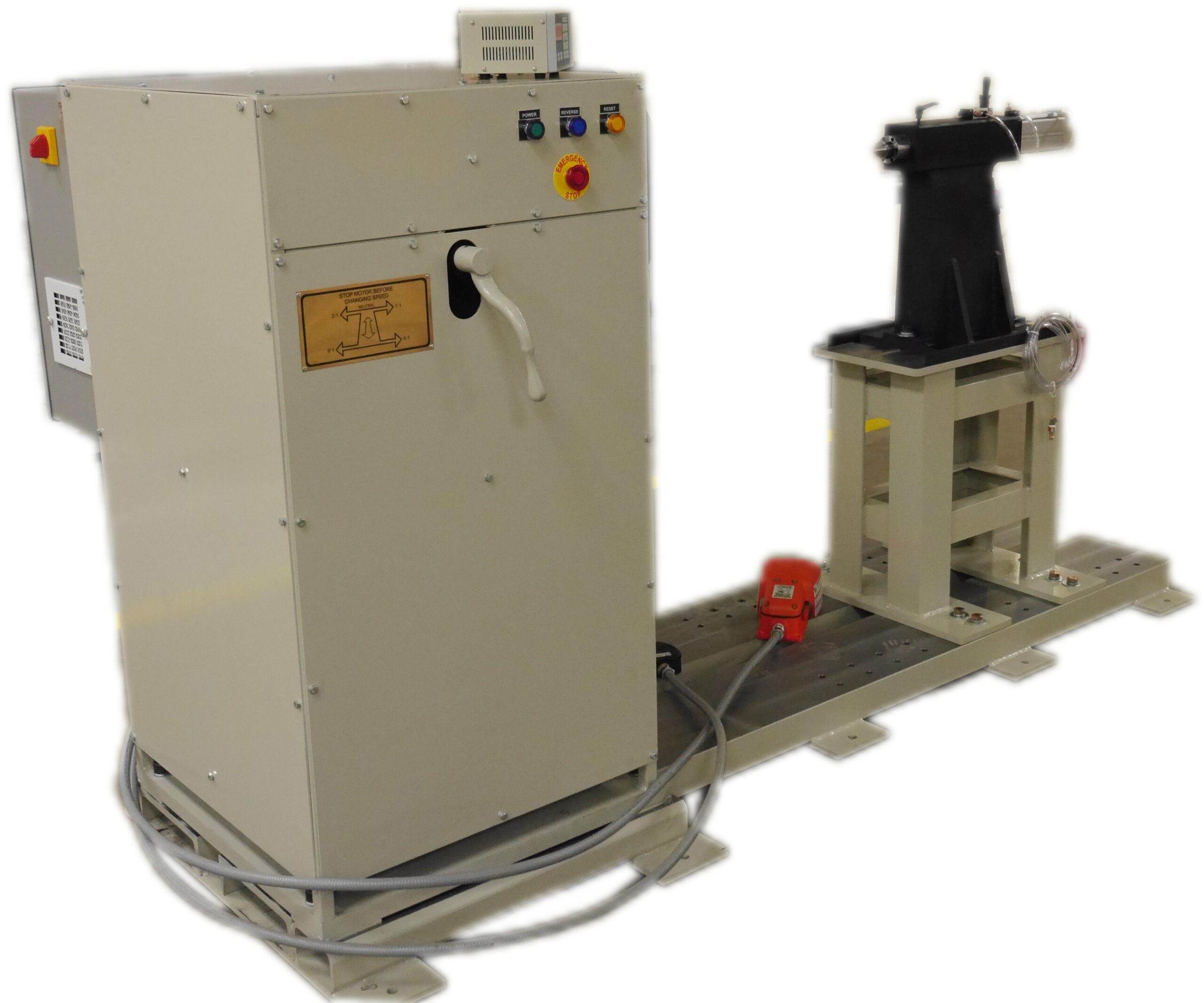

1510PKA – Heavy Gauge, Tailstock, 1/0AWG
Hand winder for all heavy gauge bobbin wound coils
Maximum Wire Size Wound 1/0 AWG (0.325″)
- Max Spindle Size: 225 RPM, 112RPM, 56RPM, 37RPM
- Motor: AC 5HP 3Phase
- Voltage: 240 or 480 Volts AC
- Faceplate: 17″
- Maximum Clearance: 40″ (Shaft Center to Base)
- Speed Control: Foot Pedal
- Controls: SMC-3 System
- Brake: Positive Stopping Magnetic Brake
- Dimensions: 122″ x 36″ x 54
